TR 400E trailer refrigeration unit

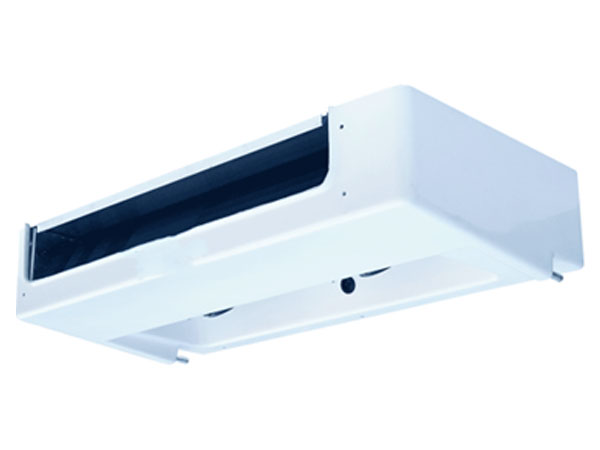

TR-400E Evaporator

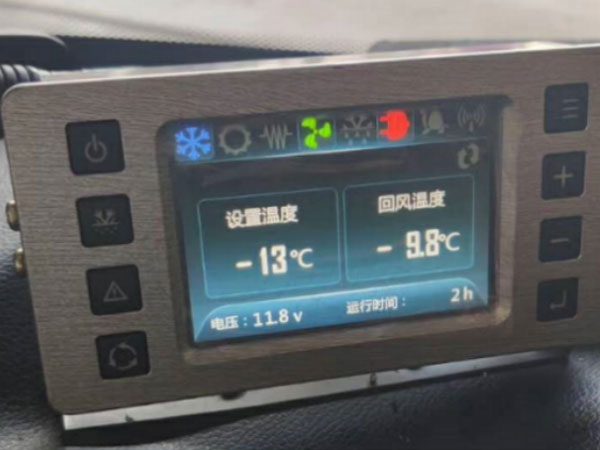

refrigeration unit controller

TR-400E Reefer Trailer Tefrigeration Unit

Model
TR-400E
Temperature range
-20℃~+30℃
Drive Mode
Pure Electric
Refrigerant
R404a
Introduce
Features
Technology
Install

TR-400E Trailer Refrigeration Unit Introduction

Reefer trailer refrigeration freezer units are a critical component for many businesses that rely on transporting perishable goods.

A reefer trailer refrigeration freezer unit is a crucial piece of equipment for many industries that rely on transporting perishable goods. From food and pharmaceuticals to chemicals and medical supplies, these units play a vital role in ensuring that products remain at the correct temperature during transit.

Benefits of Reefer Trailer Refrigeration Freezer Units

Versatility: Reefer trailer refrigeration freezer units can be used to transport a wide range of products, from frozen foods and ice cream to vaccines and medical supplies.
Temperature control: Reefer trailer refrigeration freezer units provide precise temperature control, which is critical for transporting perishable goods safely. They can maintain the temperature of the cargo within a narrow range, ensuring that it stays fresh and safe for consumption or use.
Reliability: These units are built to withstand the rigors of long-distance transportation and are designed to operate reliably in a variety of weather conditions.

TR-400E Trailer Refrigeration Unit Specification

Parameters of TR-400E Refrigeration Unit
Model TR-400E
Applicable box volume 13-18m³
Temperature range -20℃~+30℃
Cooling capacity 0℃/+30℃ 4250W
-18℃/+30℃ 2380W
High voltage DC250-DC450V/ DC380V-DC750V
Power 0℃/+30℃ 2650W
-18℃/+30℃ 2150W
Controller High-end liquid crystal
Drive mode Pure electric
Low voltage power Self power supply DC-DC
Emergency power supply AC380V(standard)
Compressor EVS34
Refrigerant R404a
Refrigerant charge 1.5kg
Defrost method Hot air defrosting
Condenser assembly Dimension mm(L*W*H) 1200*512*322
Weight(kg) <68.5
Condenser fan Qty. 2
Total air volume 3600m³/h
Evaporator assembly Dimension mm(L*W*H) 1092*590*241
Weight(kg) 24.5
Evaporator fan Qty. pcs
Total air volume 2000m³/h

Technical Features of TR-400E Trailer Refrigeration Unit

01
Reefer Trailer Tefrigeration Unit Features
1. The power consumption per hour of cold machine operation is about 2.5KW/H.
2. Frequency conversion control, more precise and high stability.
3. The heat exchanger has a large volume and a large air volume to ensure efficient heat exchange capacity and sufficient cooling capacity.
4. The controller adopts light-touch temperature and air volume adjustment, and the temperature adjustment range is wide (-25°C to +30°C).
5. The industry's original double-seal technology, the system leakage is less than 3 grams per year, and the long-term reliable operation does not leak.
6. American AMP/Delph waterproof connectors, the pullout force is greater than 180N/M, sealed and waterproof. Eliminate poor contact, thick wires, and no heat at high temperatures.
02
How do Reefer Trailer Freezer Units Work?
Reefer trailer freezer units work by removing heat from the air inside the trailer, which in turn lowers the temperature of the cargo. They achieve this using a refrigeration system that circulates a coolant fluid around a closed loop, absorbing heat from the trailer's air and dissipating it outside.

The coolant fluid typically used in these units is a type of refrigerant that has a low boiling point, such as ammonia, carbon dioxide, or Freon. The refrigerant is compressed, which raises its temperature and pressure, and then passed through a condenser where it releases heat to the environment. After that, it's expanded through a valve, which lowers its pressure and temperature, and then circulated through an evaporator inside the trailer, where it absorbs heat from the air and cools it down.

The process continues in a cycle, with the refrigerant being compressed and expanded repeatedly to maintain the desired temperature inside the trailer. This cycle is controlled by a thermostat that senses the temperature of the air inside the trailer and adjusts the operation of the refrigeration system accordingly.
03
Best Practices for Reefer Trailer Refrigeration Units
To ensure that your reefer trailer refrigeration unit operates at its best, here are some best practices to follow:

Regular maintenance: Regular maintenance is critical to ensure that your unit operates efficiently and reliably. This includes cleaning the condenser and evaporator coils, checking the refrigerant levels, and inspecting the unit's components for wear and tear.

Proper loading: Proper loading of the trailer is essential to ensure that the cold air circulates evenly throughout the cargo. Avoid overloading the trailer or packing it too tightly, as this can hinder airflow and lead to uneven cooling.

Temperature monitoring: Use a data logger or a remote monitoring system to track the temperature inside the trailer during transit. This can help you identify any temperature fluctuations and take corrective action if necessary.

Fuel management: Fuel management is essential to ensure that the unit operates efficiently and maximizes fuel economy. Plan your route carefully and avoid unnecessary idling or speeding, as these can increase fuel consumption and reduce the unit's lifespan.
