TR-110D Electrical Van Refrigeration Units

  • Product Name: • DC Powered Refrigeration Unit
  • Refrigerant: • R134a
  • Temperature in Container: • -5℃~+25℃
  • Compressor: • PSD-012(15cc/r)
  • Controller: • Digital, In Cab
  • Temperature in Container: • -5℃~+25℃

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications
  • Technical Data
  • Inquiry

TR-110D Electrical Van Refrigeration Units

Electric Van Refrigeration Units Introduction


Guchen's electric refrigeration unit for cargo van is DC powered refrigeration unit, which is also rooftop mounted non-independent refrigeration systems, driven  by the vehicle battery.

The critical components are imported from famous world-top brands with high quality; The DC powered refrigeration units have the stylish streamlined appearance compatible to the vehicle body; The refrigeration units are designed specially for Sprinter,Ford, Fiat,Renault,VW,EVECO...Vans and 2~5m³ volume of containers.



Electric Cargo Van Refrigeration Unit Principle Diagram


DC Powered Refrigeration Unit



Why Guchen TR110D Electric Van Fridge Unit is the Best Choice for Cargo Van ?



For most small van, there are no spaces to install compressor, so electric refrigeration unit will be the best choice. That is because the compressor is in the inner side of condenser, so you don't need to consider whether there is a space for installation of compressor.

√ For condenser, we use parallel flow core, its weight is light and cooling fast.

√ For evaporator, we use copper pipe & aluminum foil fin core, so it has a better heat dissipation performance.


Application of the TR-110D DC Powered Refrigeration Unit


The TR-110D electric cargo van refrigeration unit is used to store fresh for the delivery of fresh goods like fruits, vegetables, meat,cakes,etc. , application for 2~5m³ van and truck body at temperature of -5℃~+25℃.

The system has the following features: high efficient, energy saving, quick refrigerating and accurate temperature control,etc.

electric cargo van refrigeration units



TR-110D Electric Van Refrigeration Units Key Parts

  • Evaporator Assembly
  • Rooftop Mounted Condenser Assembly with in-built Electric Compressor
  • In Cab Digital Controller
  • Receiver Tank;
  • Hoses pipes, Wire Harness, Installation Accessories
DC Powered Refrigeration Unit Key Parts

DC Powered Refrigeration Unit Key Features


  • Operation voltage 12V/24V/48V/72V/96V
  • Green and environment-friendly refrigerant R134a
  • Strong cooling capacity; Large airflow capacity
  • Top brand key parts: Sanden; Danfoss; Good Year; Spal; Codan, etc.
  • International Certifications ISO9001/TS16949CE/QS9001/CE etc.
  • Pro-active service; reasonable price; long life time products quality.



Electric Refrigeration Unit for Cargo Van

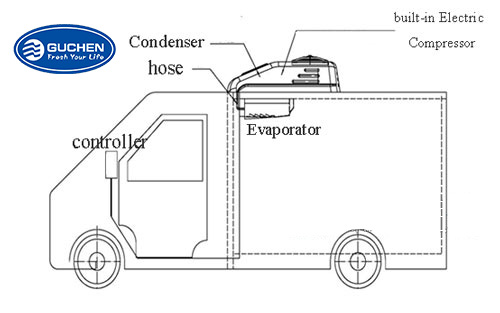

Installation


The Condenser is rooftop mounted; the Evaporator is horizontally mounted on the ceiling of the container.
The Controller is installed in the driver’s cab; then connect the Hose pipes and Wire harness among the Condenser, the Evaporator and the Controller, and bound tight the pipes and wires.

Installation of the DC Powered Refrigeration Unit



How could the Electric Refrigeration Unit Run when the Van Stops?


When cargo van stops, the battery won’t last long to keep driving the refrigeration unit.
Then we equip the refrigeration unit with an extra Transformer(AC Power Switch), which can transform the AC main power to DC12V/DC24V; besides, it can be plugged into the 240V/380V main power supply , and in the mean time charge the vehicle battery.So it’s very simple and convenient to run the van refrigeration units when the engine is off.

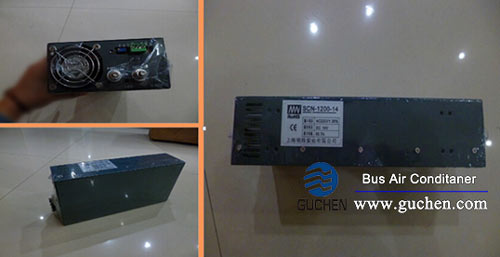

Transformer

Photo: electric cargo van refrigeration units converter

TR-110D Electrical Van Refrigeration Units

Model

TR-110D

Temperature Range(In Container)

-5℃ ~ +25℃ / +23℉ ~ +77℉

Cooling Capacity

0℃/+32℉

1100W / 952Kcal/h / 3750 BTU

Compressor

Model

YM15

Displacement

15cc/r

Weight

NO

Condenser

Coil

Hydrophilic aluminum foil with internal ridge copper tube

Fan



Dimensions

865*660*210 MM

Weight

40 kg

Evaporator

Coil

Aluminum foil with internal ridge copper tube

Fan



Dimensions

510*600*210 MM

Weight

18 kg

Voltage&Total current

DC12V(55A) DC24V(35A)

Refrigerant

R134a

Defrosting

NO

Total Weight

63 kg

Application

Sprinter Ford,Fiat,Renault,VW,IVECO etc
