PD series bus air conditioner
PD-04 bus ac units
PD-06 rooftop bus hvac systems
PD-07 air conditioner for city buses

PD Series Bus Air Conditioner System

Model:
PD Series Bus HVAC
Driven Type:
Engine Direct Driven
Refrigerant:
R134a
Installation:
Rooftop mounted
Application:
6-18m bus, shuttle bus, schoole bus, transit and coach applications.
Introduce
Features
Technology
Install
Application

PD Series Bus Air Conditioner System Introduction

With the rapid development of bus industry and people's living standard is increasingly day by day, bus have already been entered people's daily life, so a comfortable bus travel condition takes more and more important role in people's life.

Guchen industry as the bus air conditioner supplier in China always keep in pursuit of bus air conditioner's safety and reliability, meanwhile also pay more attention to modern human in pursuit of comfortable, especially when traveling by bus. With the air conditioning system as one of the basic device for modern buses, Guchen's PD series bus air-conditioning front upwind-style design is conducive to natural wind entering the passenger compartment, make passenger feel very comfortable!

See the full catalogue of Guchen Bus HVAC systems here.



Wide Application of PD Bus A/C System

PD series can meet different customers’ demands for bus travel: inner city public transportation, school public transportation and tourist transportation.
Guchen PD series rooftop mounted bus air conditioning covers cooling capacity from 21KW to 38 KW. The overall lightweight design, low cost and less fuel consumption, very suitable for coach, city buses with 7-12 meter length.
Its compressor is driven by vehicle engine, and control system is powered by vehicle alternator or an independent alternator when bus length is over 10 meter.

Technical Parameter of PD Series Bus Air Conditioning System

Series PD-03 PD-04 PD-05 PD-06 PD-07
Application 7-7.5m 7.5-8m 8-8.7m 8.7-10m 10-12m
Cooling Capacity(kcal/h) 18000 22000 24000 28000 32000
Evaporator air flow(m³/h) 4000 4000 4000 6000 8000
Number of evaporator blowers 4 4 4 6 8
Fresh air flow(m³/h) 1000 1000 1000 1500 1750
Size(mm) 2481*1820*220 2481*1820*226 2481*1820*226 3010*1902*225 3285*1902*225
Max ambient temperature(℃) 50 50 50 50 50
Compressor Valeo TM31 Bitzer F400 Bock 560K Bock 560K Bock 655K
Compressor displacement(cc) 313 400 554 554 650

Note:
◆ Compressor as optional like Valeo, Bitzer or Bock
◆ The fan and blower as option like brush or brushless, local or Spal etc.
◆ The coil of condenser as option like miro-chanel heat exchange, copper tube and aluminum tube.

Choose the Suitable Bus Air Conditioner System

01
PD-03 Apply for 7-7.5m Bus
pd-03 bus air conditioner
PD-03 bus air conditioner is specially designed for 7-7.5 meter city bus and coach, its cooling capacity is 18000kcal/h, if your vehicle ranges from 7 to 7.5m, PD-03 bus air conditioner is your best choice.

◆ SMC housing, with excellent anti-corrosion and climate proof performance.

◆ Using patented streamline low air resistance technology, enhanced appearance.


PD-03 bus air conditioner PD-03 rooftop bus air conditioning system


◆ Condenser using patented micro-channel heat exchanger technology, precise design, sufficiently improved the heat exchanging efficiency, reduced the weight, less refrigerant charge, achieved a higher efficiency and lower fuel consumption.

◆ Facing windward condenser layout, increased the face area of the condenser, reduced the length and cubic of the unit.


PD-03 Bus Air Conditioner Technical Data



Model

PD-03

Cooling Capacity

21 KW / 18,000 Kcal/h / 71,000 BTU

Heating Capacity

Optional

Fresh Air

1000 m3/h

Refrigerant / Volume

R134a / 4.5 kg

Compressor

Model

TM-43 / F400

Displacement

425 cc / 400cc

Weight

20.5 kg / 31 kg

Oil Type

ZXL 100PG PAG / BSE55

Evaporator

Type

Hydrophilic aluminum foil with internal ridge copper tube

Air Flow

4,000 m3/h

Blower Type

4-speed centrifugal type

No. of Blower

4 pcs

Current

32A

Condenser

Type

Micro-channel heat exchanger

Air Flow

5,700 m3/h

Fan Type

Axial type

No. of Fan

3 pcs

Current

24A

Total Current

< 65A

Application

7-7.5 meter City Bus or Coach

02
PD-04 Apply for 7.5-8m Bus
pd-04 bus ac units
PD-04 Roof mounted bus air conditioner is designed for 7-8 meter city bus or 8-9 meter coach

PD-04 City Bus Air Conditioner Technical Data


Model

PD-IV

Cooling Capacity

25.6 KW / 22,000 Kcal/h / 87,000 BTU

Heating Capacity

Optional

Fresh Air

1000 m3/h

Refrigerant / Volume

R134a / 5 kg

Compressor

Model

Bitzer F400 / VALEO TM43

Displacement

400 cc /425 cc

Weight

31 kg / 20.5kg

Oil Type

BSE55 / ZXL 100PG PAG

Evaporator

Type

Hydrophilic aluminum foil with internal ridge copper tube

Air Flow

4,000 m3/h

Blower Type

4-speed centrifugal type

No. of Blower

4 pcs

Current

30A

Condenser

Type

Micro-channel heat exchanger

Air Flow

5,700 m3/h

Fan Type

Axial type

No. of Fan

3 pcs

Current

24A

Total Current

<65A

Application

7-8 meter City Bus or 8-9 meter Coach

03
PD-05 Apply for 8-8.7m Bus
pd-05 bus ac

PD-05 Roof mounted bus air conditioner is designed for 8-9 meter city bus or 8-10 meter coach

PD-05 Bus Air Conditioner Technical Data


Model

PD-05

CoolingCapacity

27.9KW/24,000Kcal/h/95,000BTU

HeatingCapacity

Optional

FreshAir

1000m3/h

Refrigerant/Volume

R134a/5.5kg

Compressor

Model

BitzerF600

Displacement

582cc

Weight

35kg

OilType

BSE55

Evaporator

Type

Hydrophilicaluminumfoilwithinternalridgecoppertube

AirFlow

4,000m3/h

BlowerType

4-speedcentrifugaltype

No.ofBlower

4pcs

Current

36A

Condenser

Type

Micro-channelheatexchanger

AirFlow

5,700m3/h

FanType

Axialtype

No.ofFan

3pcs

Current

27A

TotalCurrent

<75A

Application

7-8meterCityBusor8-9meterCoach

04
PD-06 Apply for 8.7-10m Bus
PD-06 bus air conditioner
PD-06 Roof mounted bus air conditioner is designed for 9-11 meter city bus or 10-12 meter coach.

PD-06 bus air conditioner


PD-06 Bus Air Conditioner Technical Data


Model

PD-06

Cooling Capacity

32.6 KW / 28,000 Kcal/h / 111,000 BTU

Heating Capacity

Optional

Fresh Air

1500 m3/h

Refrigerant / Volume

R134a / 7.5 kg

Compressor

Model

BOCK FKX40/560K

Displacement

554 cc

Weight

33 kg

Oil Type

FUCHS Reniso Triton Se55

Evaporator

Type

Hydrophilic aluminum foil with internal ridge copper tube

Air Flow

6,000 m3/h

Blower Type

7-speed centrifugal type

No. of Blower

4 pcs

Current

48A

Condenser

Type

Micro-channel heat exchanger

Air Flow

7,600 m3/h

Fan Type

Axial type

No. of Fan

4 pcs

Current

32A

Total Current

< 85A

Application

9-11 meter City Bus or 10-12 meter Coach

05

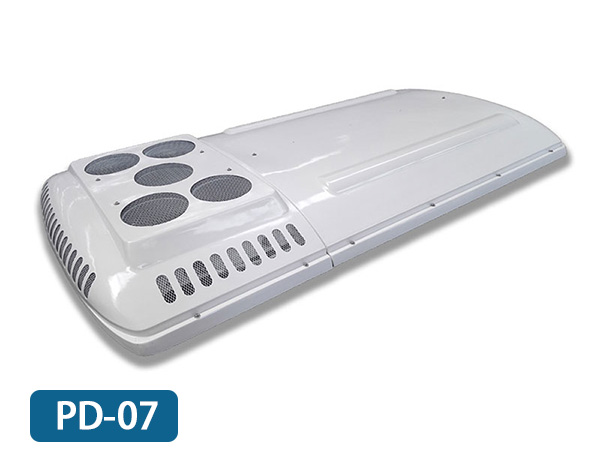

PD-07 Apply for 10-12m Bus
pd-07 bus air conditioning

PD-07 Roof mounted bus air conditioner is designed for 10-12 meter city bus or 11-13 meter coach.

PD-07 rooftop bus hvac systems



Model

PD-07

Cooling Capacity

37.2 KW / 32,000 Kcal/h / 127,000 BTU

Heating Capacity

Optional

Fresh Air

1750 m3/h

Refrigerant / Volume

R134a/8 kg

Compressor

Model

BOCK FKX40/655K

Displacement

650 cc

Weight

33 kg

Oil Type

FUCHS Reniso Triton Se55

Evaporator

Type

Hydrophilic aluminum foil with internal ridge copper tube

Air Flow

7,000 m3/h

Blower Type

7-speed centrifugal type

No. of Blower

8 pcs

Current

48A

Condenser

Type

Micro-channel heat exchanger

Air Flow

9,500 m3/h

Fan Type

Axial type

No. of Fan

5 pcs

Current

40A

Total Current

< 95A

Application

10-12 meter City Bus or 11-13 meter Coach

06
PD Series Bus Air Conditioner System Features
1. Lightweight, adopted micro-channel heat exchanger, low fuel cost, high cooling performance.

2. Facing windward condenser layout, increased the face area of the condenser, and reduced the length and cubic of the unit.

3. Shock absorbing design, driving on bumpy road does not affect the cooling effect

4. Significantly reduced the condenser weight: Condenser coil using efficient micro-channel heat exchanger technology, lightweight and precise design, small size, sufficiently improved the heat exchanging efficiency, reduced the weight, and achieved a higher performance.

5. Greatly improved the heat exchanging performance: Evaporator coil use inner ridges copper tube, wave-shaped hydrophilic aluminum fins design, not only made the refrigerant delivered evenly, but also increased the heat exchanging size.

6. SMC housing, enhanced corrosion resistance technology used for bus air conditioning components to meet the long-term operation, even under the humidity climate.

7. LFT-D molding housing, Eco-friendly materials, recyclable, reusable, excellent corrosion resistant and high comprehensive performance.

8. Fault code display, intelligent diagnosis makes bus air conditioner more convenient to maintain
07
Customer Installation and Reviews
PD series bus ac units are our hot sale products, which is very popular in Asia, Africa and Latin American markets, if you have a mid-bus or minibus which not more than 10 meters, and you need a high performance bus HVAC with competitive price, we highly recommended that purchase PD model bus air conditioner.

Guchen PD series Bus Air Conditioner

This is Guchen PD-03 bus air conditioner applies on the 7 meter length Fuso-Minibus for university students and teachers transpiration in Pakistan. It is very suitable for the local areas with great anti-corrosion performance and big cooling capacity up to 21KW, so even though the local ambient temperature is up to 50℃ in summer, the inner side of bus not feel hot! So our customers are very satisfied with the big cooling capacity ac units!
---------Guchen PD Series Bus Air Conditioning Units Apply on Pakistan School Bus
