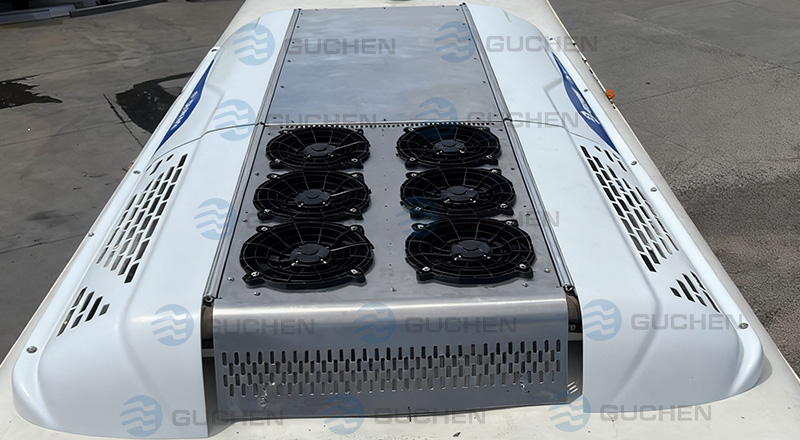

Basic Introduction of GC-500 Bus Air Conditioner:

Buses are one of the most commonly used modes of public transportation. During journeys, rising cabin temperatures and poor air circulation can lead to discomfort and unpleasant odors, significantly affecting passenger comfort. The GC-500 bus air conditioner effectively addresses these issues, providing a comfortable environment for passengers, reducing driver fatigue, and enhancing overall driving safety. High-quality bus air conditioning is therefore essential for both passenger comfort and operational safety.

The GC-500 is a state-of-the-art air conditioning system designed for 12–14 meter buses, delivering exceptional cooling performance, energy efficiency, and reliability. Engineered for demanding transport applications, this unit ensures passenger comfort even in the most challenging environments.

Techinical Features of GC-500 BUS AC Systems

Cooling and Heating Performance: The GC-500 delivers 44 kW cooling (38,000 Kcal/h / 150,000 BTU) and optional heating for year-round comfort. It supplies 1,750 m³/h of fresh air, ensuring a healthy and comfortable cabin environment.

Advanced Compressor Technology: Equipped with VALEO TM65 or BOCK FK40 755K compressors (655 cc / 755 cc, 31 kg), lubricated with FUCHS Reniso Triton Se55 oil, the GC-500 ensures efficient, reliable performance.

Evaporator Design: The high-efficiency evaporator uses hydrophilic aluminum foil and ridged copper tubes, providing 8,000 m³/h airflow via 8 centrifugal fans with 4-speed control, drawing up to 48A.

Main Parameters of GC-500 Bus HVAC Units

Model	GC-500
Cooling Capacity	44 Kw; 38,000 Kcal/h; 150,000 BTU
Heating Capacity	Optional
Fresh Air	1750 m3/h
Refrigerant	R134a
Compressor	Model	VALEO TM65 / BOCK FK40 755K
	Displacement	655 cc / 755 cc
	Weight	31 kg
	Oil Type	FUCHS Reniso Triton Se55
Evaporator	Type	Hydrophilic aluminum foil with internal ridge copper tube
	Air Flow	8,000 m3/h
	Fan Motor	4-speed centrifugal type
	No. of fan	8 pcs
	Current	48A
Condenser	Type	Micro-channel heat exchanger
	Air Flow	12,000 m3/h
	Fan Motor	Aluminum foil with internal ridge copper tube
	No. of fan	6 pcs
	Current	48A
Total Current	< 110A
Application	12-14 Meter Bus

Designed specifically for 12–14 meter buses, the GC-500 balances high performance with energy efficiency, offering reliable climate control for urban and intercity buses alike. Its advanced design, quality components, and optimized airflow make it a top choice for fleet operators seeking comfort, durability, and efficiency.

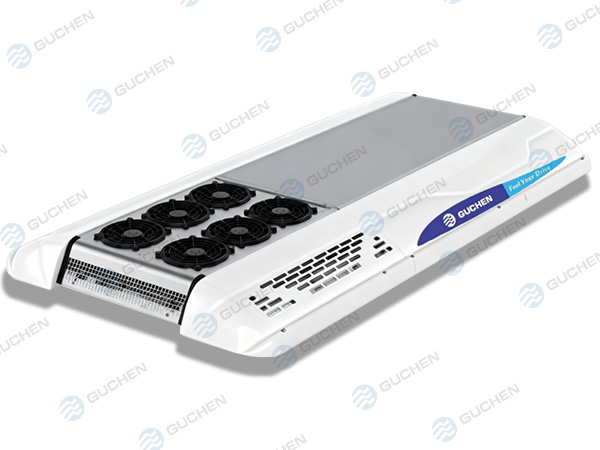

GC-500 High-Capacity Bus Air Conditioner
