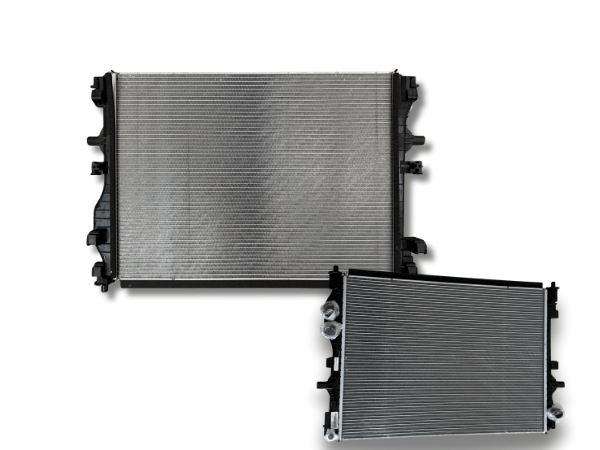

Aluminum Car Radiator for Engine Cooling System

Refrigerant:
50% Water + 50% Ethylene Glycol
Size:
Height: 350–650 mm;Width: 500–750 mm
Thickness:
16 / 21 / 27 mm
Material:
PA66-GF30 + EPDM + Aluminum
Vehicle Type:
Passenger Cars
Other Features
Temperature Sensor, Pressure Switch, Drain Valve
Introduce
Features
Install

Compact Radiator for Vehicle Cooling Applications

Working Principle:
The radiator is typically mounted at the front of the vehicle's cooling module. It uses fresh air from the fan and oncoming airflow during driving to cool the antifreeze circulating through the system.
Application:
Designed to cool antifreeze in the water circuits of systems such as the engine, battery, electric motor, and electronic control unit.
Connection Methods:
Spring clip insertion, screw with embedded nut connection, or self-tapping screw into plastic water chamber connection post.
Structural Features:

Cross-flow design with a compact structure and high reliability.
Manufacturing Process:
Utilizes NOCOLOK brazing and riveting techniques with a high level of process maturity.
Performance:
Features a compact structure, strong heat exchange efficiency, and excellent reliability.

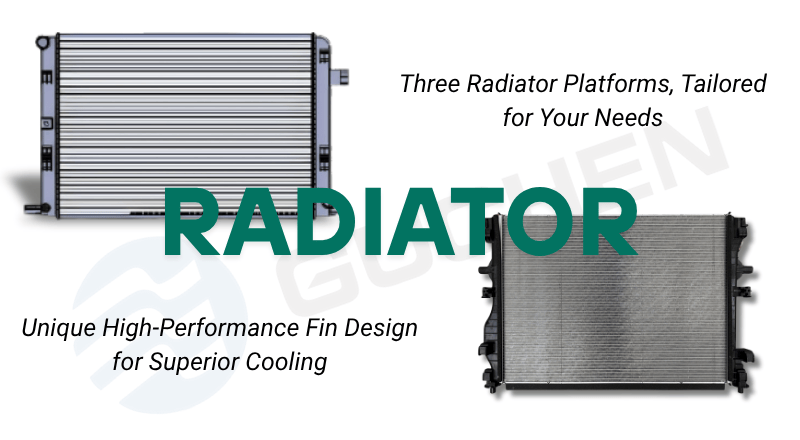

Radiator Platform: Features and Advantages

Compact structure, mature manufacturing process, and high reliability.
Platform-based design significantly reduces development risk.
Multiple matching options and high structural design flexibility. Product components are continuously optimized and iterated, with heat exchange performance ranking among the top in China.

Top Customer Questions on Radiator Design and Performance

01
How many radiator platforms does the company have?
There are three platforms: 16mm, 21mm, and 27mm. Among them, the 16mm and 27mm platforms are further subdivided into two specifications each.
02
What are the characteristics of the radiator’s heat exchange performance?
The parts related to heat exchange mainly include flat tubes and fins. For the flat tubes, dimpled indentations are used to increase turbulence. Regarding the fins, our company has developed a distinctive high-performance fin design through research on key factors such as window opening angle, window opening rate, and fin waveform.
03
What are the features of radiator reliability?
Reinforcement plates are added at the four corners of the core ends. Weakening structures on the side plates and puncture-resistant main plates have been developed, all of which improve product reliability.
04
What are the features of radiator design and development?
Our company adopts a platform-based design approach, with related structures and parameters for reliability and durability already standardized, which reduces design and development risks.
