ES-05 Electric Bus Air Conditioner (8.5-9m Bus)

  • Product Name: • Guchen ES-05 Electric Bus Air Conditioner
  • Driven Type: • Vehicle Electric or Battery
  • Installation: • Rooftop Mounted
  • Compressor: • Hermetic Scroll Compressor
  • Refrigerant: • R407c
  • Application: • 8.5-9m all-electrical buses, hybrid buses, tramways, and trolleybuses

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications
  • Technical Data
  • Inquiry

ES-05 Electric Bus Air Conditioner (8.5-9m Bus)


Guchen ES-05 Electric Bus Air Conditioning Introduction

Guchen ES-05 air conditioner for trolley bus is designed for 8.5-9m buses. With R407C environment-friendly refrigerant, it can offer big cooling capacity which can up to 26KW. Also customers can use DC450-700V voltage for this tram air conditioner. And another good point is ES-05 tram air conditioning can be equipped with 24KW heating capacity to meet different requirements of our customers.

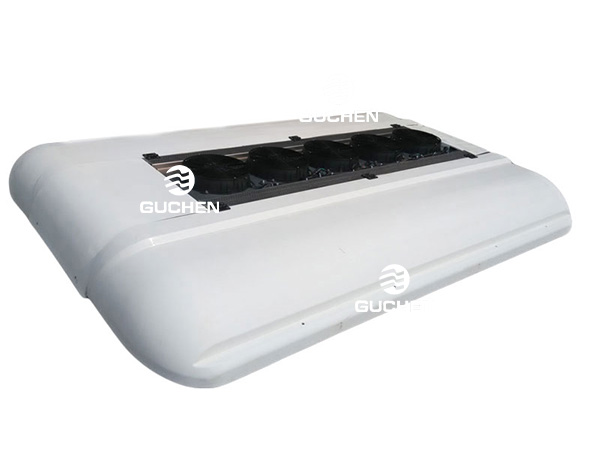

ES-05 all electric air comditioner
PHOTO: Guchen Industry ES-05 Rooftop All Electric Air Conditioner for Bus and the third photo is taking waterproof test

Guchen ES-05 Electric Bus Air Conditioning Features

1.Use scroll compressor, intellective heat load reaction and automatic cooling capacity adjusting.
2.Modular, roof mounted, light weight, fit for vehicle of different width
3.Adopt CAN control technology, multi-operation mode, concisely lining and more reliable control
4.Adopt R407C environment friendly refrigerant, volume charge saving more than 20%.

Guchen always adheres to the values of "Energy, synergy and innovation", and continuously works on creating a comfortable, satisfactory, healthy, safe and clean products. So Guchen's all-electric bus air conditioner gets high praises at home and abroad when it hits the market. If you want to know more about rooftop air conditioner for bus, please contact us without hesitation !


Guchen ES-05 Electric Bus Air Conditioning Technical Data


Model  ES-05

Cooling Capacity

2000 Kcal/h / 26kw / 104000BTU

Heating Capacity

20,600 Kcal/h  /24kw  / 82000BTU

Input Voltage Range(Main power line)

DC400V~DC720V

Input Voltage Range (Control system)

DC-24V 5A

Rated Power Consumption

8.0 Kw

Max Ambient temperature

46 °C

Refrigerant

R407c/ 3.6kg



Compressor



Model

DC ELECTRIC  VARIABLE - FREQUENCY COMPRESSOR EVS34CCBAD-MN7A

Oil Type

HAF68



Evaporator



Type and model

Copper Pipe and Aluminum foil  / QDKT12A-012-Z/Y

Air Flow

6000m3/h

Fan Motor

7-speed centrifugal type EBM Brushless Blower  KLCJ-0131




Condenser





Type and model

Copper  Pipe and Aluminum foil / QDKT12A-017

Air Flow

8000m3/h

Fan Motor

Axial type Brushless Fan KLCJ-0176

Expansion  Valve

Electronic expansion valve Danfoss ETS6-18

Gas-liquid Separator

QFQ1.2

Bidirectional Dry Filter

Danfoss DCB084s  KLCJ-0705

Fresh Air Device/ Fresh Air volume

KLCJ-0405 / 800 m3/h

Control Panel

 Control Panel with  Fault code display

Control sytem

 CAN bus control system with 7 speed air flow adjusting module

AC Size in mm (l × w × h)/ Weight

2750×1920×285mm  / 200kg

Application

9-11 meter Pure Electric Bus ,Trolley bus, Tram ,New Energy bus and Hybrid Bus



Models of ES series All Electric Bus Air Conditioner


ES series All Electric Bus Air Conditioner Catalog
ED-03 Electric Bus Air Conditioner--- Apply for 6-7 meter bus
ES-04 Electric Bus Air Conditioner--- Apply for 7-8.5 meter bus
ES-05 Electric Bus Air Conditioner--- Apply for 8.5-9 meter bus
ES-06 Electric Bus Air Conditioner--- Apply for 10-12 meter bus

ES-05 Electric Bus Air Conditioner (8.5-9m Bus)


Model  ES-05

Cooling Capacity

2000 Kcal/h / 26kw / 104000BTU

Heating Capacity

20,600 Kcal/h  /24kw  / 82000BTU

Input Voltage Range(Main power line)

DC400V~DC720V

Input Voltage Range (Control system)

DC-24V 5A

Rated Power Consumption

8.0 Kw

Max Ambient temperature

46 °C

Refrigerant

R407c/ 3.6kg



Compressor



Model

DC ELECTRIC  VARIABLE - FREQUENCY COMPRESSOR EVS34CCBAD-MN7A

Oil Type

HAF68



Evaporator



Type and model

Copper Pipe and Aluminum foil  / QDKT12A-012-Z/Y

Air Flow

6000m3/h

Fan Motor

7-speed centrifugal type EBM Brushless Blower  KLCJ-0131




Condenser





Type and model

Copper  Pipe and Aluminum foil / QDKT12A-017

Air Flow

8000m3/h

Fan Motor

Axial type Brushless Fan KLCJ-0176

Expansion  Valve

Electronic expansion valve Danfoss ETS6-18

Gas-liquid Separator

QFQ1.2

Bidirectional Dry Filter

Danfoss DCB084s  KLCJ-0705

Fresh Air Device/ Fresh Air volume

KLCJ-0405 / 800 m3/h

Control Panel

 Control Panel with  Fault code display

Control sytem

 CAN bus control system with 7 speed air flow adjusting module

AC Size in mm (l × w × h)/ Weight

2750×1920×285mm  / 200kg

Application

9-11 meter Pure Electric Bus ,Trolley bus, Tram ,New Energy bus and Hybrid Bus
