TR-300 Direct Engine Driven Units

  • Product Name: • Truck Refrigeration Units TR-300
  • Driven Type: • Vehicle Engine Driven
  • Installation: • Front Mounted
  • Compressor: • QP16/163cc
  • Controller: • Digital, In Cab
  • Refrigerant: • R404a

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications
  • Technical Data
  • Inquiry

TR-300 Direct Engine Driven Units

TR-300 Truck Refrigeration Units Video



TR-300 Truck Refrigeration Units
TR300 is truck refrigeration unit is a direct engine driven unit, with extra-flat evaporator of inner grooved cooper tube. Temperature range from -20℃ to 25℃. The cooling system is designed for the transportation of fresh or frozen goods in small and medium sized trucks and vans with the container volume of 10~20m³(L≤4.3m). TR-300 Truck Refrigeration Units are all installed on the front of the refrigerated truck.

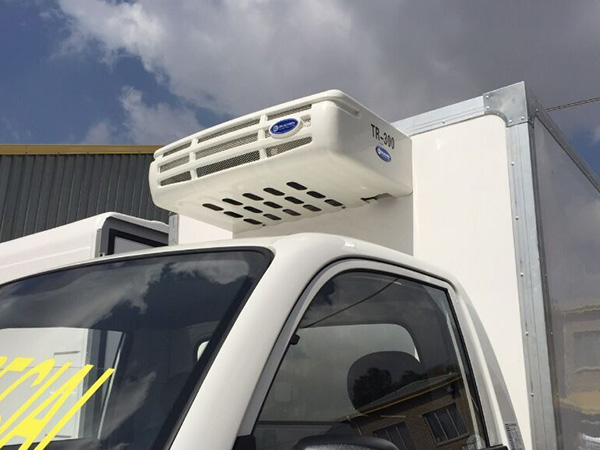

TR-300 truck refrigeration unit installation in truck
PHOTO: TR-300 truck refrigeration unit installation in truck

Outstanding features of TR-300 Truck Refrigeration Units
● R404a Eco-friendly refrigerant.
● Operation on 12/24V DC vehicles
● In cab microprocessor command, with electronic diagnostics
● Digital display:Temperature displayed in ℉or ℃;
                Set-point & Return air temperature
                Configuration parameters setting & Alarming
● Axial-flow evaporator blower and centrifugal condenser fans
● Inner grooved copper tube evaporator coils and under mount condenser coils;
● Micro-channel parallel flow condenser coils;
● Hot-gas defrost system with auto. or manual defrost temperature control system.
● Easy to maintain, including the auto-detecting system and dismantle structure.
● HP/LP protection device of the transport refrigeration units.
● International certifications ISO9001/ISO14001/TS16949/CE/RoHs, etc.

TR-300 truck refrigeration unit installation in truck TR-300 truck refrigeration unit installation in truck
PHOTO: TR-300 Truck Refrigeration Units inner view of truck body

Standard Configuration of TR-300 Truck Refrigeration Units


H/P, L/P protection of cooling system.
Liquid injection and oil return protection device.
Thermal protection device

Optional functions of TR-300 Truck Refrigeration Units
AC220V/1Ph/50Hz or AC380V/3Ph/50Hz  Split Electric Standby:

standby-of-tr-300-truck-refrigeration-units standy-of-tr-300-truck-refrigeration-units

Detailed information of Standby

Temperature Cooling capacity Power Dimensions Weight
0℃/+38℃ 2410W(8223BTU) 3000W 470×460×330mm 36kg
-18℃/+38℃ 1365W(4657BTU)


Heating function

0°C/15°C- 2105W(7182BTU)
Hot gas heating system.
Data loger function

TR-300 Direct Engine Driven Units

Model

TR-300

Temperature Range(In Container)

-20℃ ~ +30℃ / 0℉ ~ +86℉

Cooling Capacity

0℃/+32℉

3010W / 3500Kcal/h / 10270 BTU

-18℃/ 0℉

1770W / 2059Kcal/h / 6040 BTU

Compressor

Model

QP16

Displacement

163cc/r

Condenser

Coil

Aluminum micro-channel parallel flow coils

Fan

Guchen

Dimensions

880×553×230 mm

Weight

19 kg

Evaporator

Coil

Aluminum foil with internal ridge copper tube

Fan

Spal

Dimensions

845×646×230 mm

Weight

15 kg

Voltage

DC12V / DC24V

Refrigerant

R404a/1.3kg

Defrosting

Hot gas defrosting(Auto./Manual)

Application

10~20 m³
