TR-960 Direct Engine Driven Units

Product Name: • Truck Refrigeration Unit TR-960
Driven Type: • Direct Engine Driven
Condenser Installation: • Front or Under Mounted
Controller: • Digital, in Cab
Application: • 50~60m³

We're here to help: Easy ways to get the answers you need.

Send E-mail get price pdf download

Share With:

Product Categories

All-electric Bus Air Conditioner
Traditional Bus Air Conditioner
Parking Truck Air Conditioner
Van Air Conditioner
Truck Refrigeration Units
Van Refrigeration Units
DC Powered Van Reefer Unit
Diesel Powered Truck Reefer Unit
Bus A/C Parts: Compressor; Clutch; Blower; Fan
Transport Refrigeration Parts

hot products

Specifications
Technical Data
Inquiry

TR-960 Transport Refrigeration Units Video

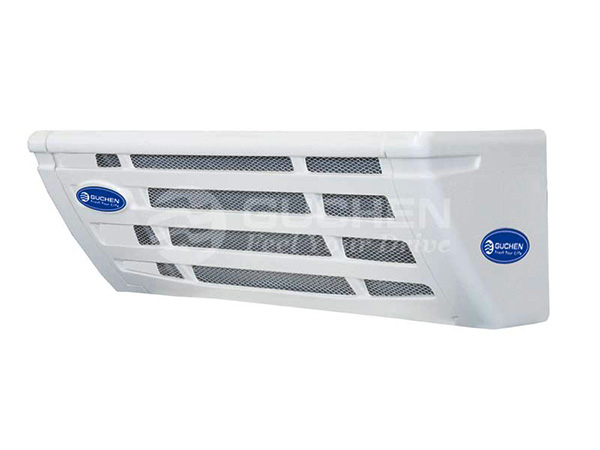

1.TR-960 Transport Refrigeration Unit Introduction

TR-960 transport refrigeration unit with the biggest cooling capacity (8425 W) in Guchen factory is able to make 60m³ refrigerated truck box temperature down to -20℃ on the road.

TR-960 cheapest truck refrigeration units for sale

2.TR-960 Transport Refrigeration Units Features

√ Hugest cooling capacity （8425 W） in Guchen products in non-independent truck reefer units.

√ Install CPR valve and liquid injection valve, increasing the units lifespan.

√ Engine driven transportation refrigeration units, lower hazard rate, higher stability.

√ Front or under mounted, if the truck roof too high to mount condenser on the top of truck, you can mount condenser under the truck.

PHOTO: TR-960 truck refrigeration units condenser mounts under the trucks

3. TR-960 Transport Refrigeration Systems Application

Applying in bigger refrigerated truck box, 50~60m³, transport different kinds of foods, such as freeze fish, meat, ice cream, sea foods and so on.

PHOTO: TR-960 cheapest truck refrigeration units for sale

4. TR-960 Transport Refrigeration Units VS. TS-1200 Independent Transport Refrigeration Units

* TS-1200 transport refrigeration unit can take place of TR-960 transport reefer, because they are similar in cooling capacity, application refrigerated truck bodies, temperature ranges.

* The difference is that TR-960 Transport Refrigeration Unit is non-independent, and TS-1200 is independent transport reefer.

5. Why US?

√ Adhere to win-win concept between clients and us. Only clients satisfy our products and service can both us have a long-term cooperation for a double win goal.

√ Greatly experienced in exporting truck refrigeration units for over 20 years.

√ Complete after-sales service with offering two-year guarantee period and free spare parts changes.

√ Accept broad target customers, both agents (large-purchasing) and individual purchasing are welcomed.

√ Professional and technological installation direction for free.

Model		TR-960
Temperature Range(In Container)		18℃ ~ +30℃ (-0.4℉ ~ +86℉)
Cooling Capacity	0℃(+32℉)	8425W / 9798Kcal/h / 28700 BTU
Cooling Capacity	-18℃(-0.4℉)	5365W / 6239Kcal/h / 18300 BTU
Compressor	Model	QP31
	Displacement	313cc/r
	Weight
Condenser	Coil	Aluminum micro-channel parallel flow coils
	Fan	Centrifugal fans
	Dimensions	1456×540×505 mm
	Weight	66kg
Evaporator	Coil	Aluminum foil with internal ridge copper tube
	Fan	Axial flow blowers
	Air flow	2860m³/h
	Dimensions	1227×650×328 mm
	Weight	43kg
Voltage		DC12V / DC24V
Refrigerant		R404a/4.2 kg
Defrosting		Hot gas defrosting(Auto./Manual)
Application		50~60m³
