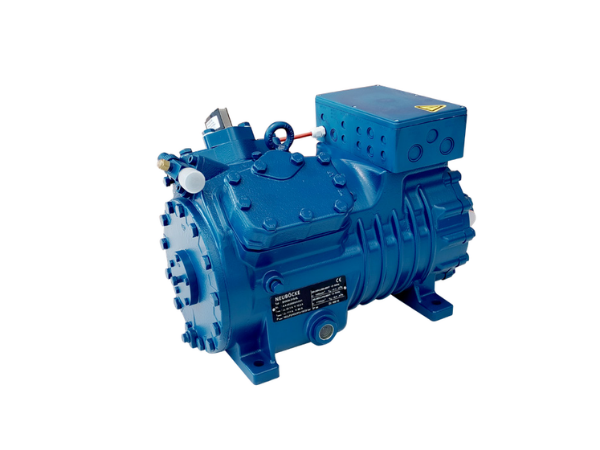

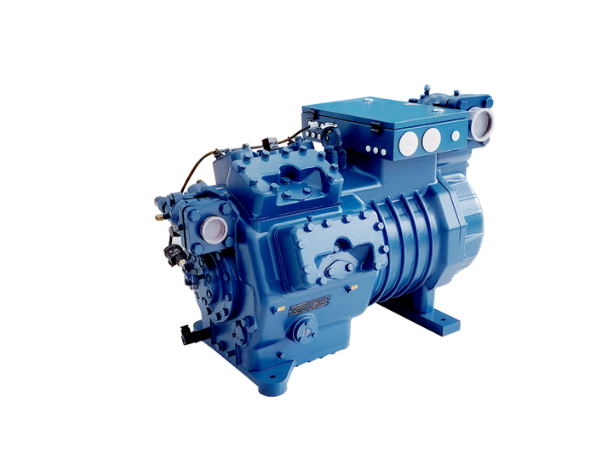

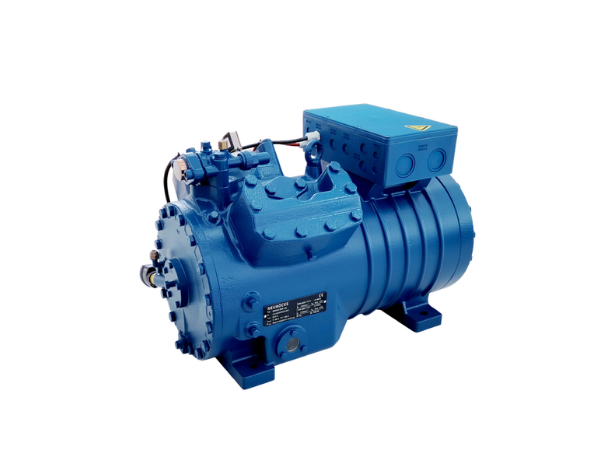

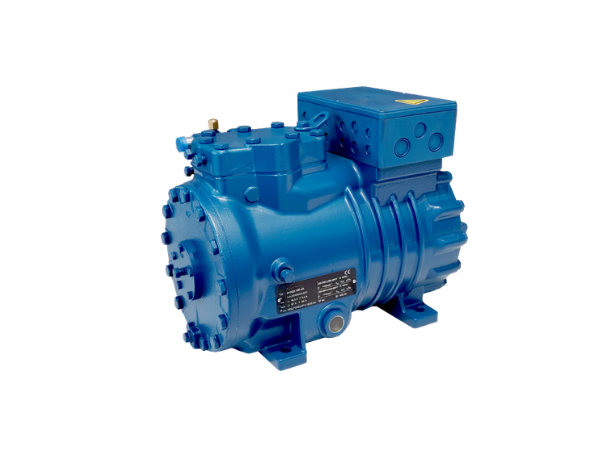

Product Overview | Semi-Hermetic Compressor: Multi-Cylinder Commercial-Grade Platform

The semi-hermetic compressors include 2-cylinder, 4-cylinder , 6-cylinder and 8-cylinder models. They are developed to meet the requirements of commercial air conditioning, refrigeration and heat pump applications, and can handle challenges under all climate conditions.
The series compressors offer the following technical advantages:

High reliability
Low operating noise
High efficiency
Compatible with various refrigerants
Easy maintenance

This series of compressors can be used in bus air conditioning, rail transit, ships and offshore engineering, cold chain logistics, testing equipment, chemical industry, pharmaceuticals, ultra-low temperature applications, heat pumps and many other scenarios.

Core Advantages | Three System-Based Designs for Stable Operation

Low Wear & Durable Structure： Moving parts feature low wear. The crankshaft is robust and surface-hardened; low-wear bearings ensure high reliability; aluminum pistons equipped with double or triple oil control rings help reduce oil carryover. The forged connecting rod provides high stability and reliability, with strong resistance to liquid slugging; the small end of the connecting rod is oil-lubricated to enhance overall durability.

Low Vibration & Low Noise Operation： Overall dynamic balancing design and reduced gas pulsation help minimize noise and vibration during operation. The valve plates are made of high-quality, impact-resistant spring steel; both suction and discharge adopt a widely used reed valve structure.

Stable Lubrication & Easy Maintenance： The system adopts a reliable lubrication solution. All compressors are equipped with a single-channel lubrication system as standard and a built-in rotor oil pump independent of rotation direction; the oil filter is easy to maintain, and a large-capacity oil reservoir ensures stable oil supply. For maintenance, a modular motor design is used for easy replacement, and no press-fit installation is required.

Technical Parameters

BOCK	BIZER	BOCK	BIZER
HG(X)22e/125-4	2EES-2(Y)	HG(X)56e/850-4	4HE-18(Y)
HG(X)22e/125-4S	2EES-3(Y)	HG(X)56e/850-4S	4HE-25(Y)
HG(X)22e/160-4	2DES-2(Y)	HG(X)56e/995-4	4GE-23(Y)
HG(X)22e/160-4S	2DES-3(Y)	HG(X)56e/995-4S	4GE-30(Y)
HG(X)22e/190-4	2CES-3(Y)	HG(X)56e/1155-4	6JE-25(Y)
HG(X)22e/190-4S	2CES-4(Y)	HG(X)56e/1155-4S	6JE-33(Y)
HG(X)34e/215-4	4FES-3(Y)	HG(X)66e/1340-4	6HE-28(Y)
HG(X)34e/215-4S	4FES-5(Y)	HG(X)66e/1340-4S	6HE-35(Y)
HG(X)34e/255-4	4EES-4(Y)	HG(X)66e/1540-4	6GE-40(Y)
HG(X)34e/255-4	4EES-6(Y)	HG(X)66e/1540-4S	6FE-44(Y)
HG(X)34e/315-4	4DES-5(Y)	HG(X)66e/1750-4	6FE-50(Y)
HG(X)34e/315-4S	4DES-7(Y)	HG(X)66e/1750-4S
HG(X)34e/380-4	4CES-6(Y)	HG(X)66e/2070-4
HG(X)34e/380-4S	4CES-9(Y)	HG(X)66e/2070-4S
HG(X)44e/475-4	4TES-9(Y)	HG(X)88e/2400-4
HG(X)44e/475-4S	4TES-12(Y)	HG(X)88e/2400-4S
HG(X)44e/565-4	4PES-15(Y)	HG(X)88e/2735-4
HG(X)44e/565-4S	4NES-14(Y)	HG(X)88e/2735-4S
HG(X)44e/665-4	4NES-20(Y)	HG(X)88e/3235-4
HG(X)44e/770-4	4JE-15(Y)	HG(X)88e/3235-4S
HG(X)44e/770-4S	4JE-22(Y)
